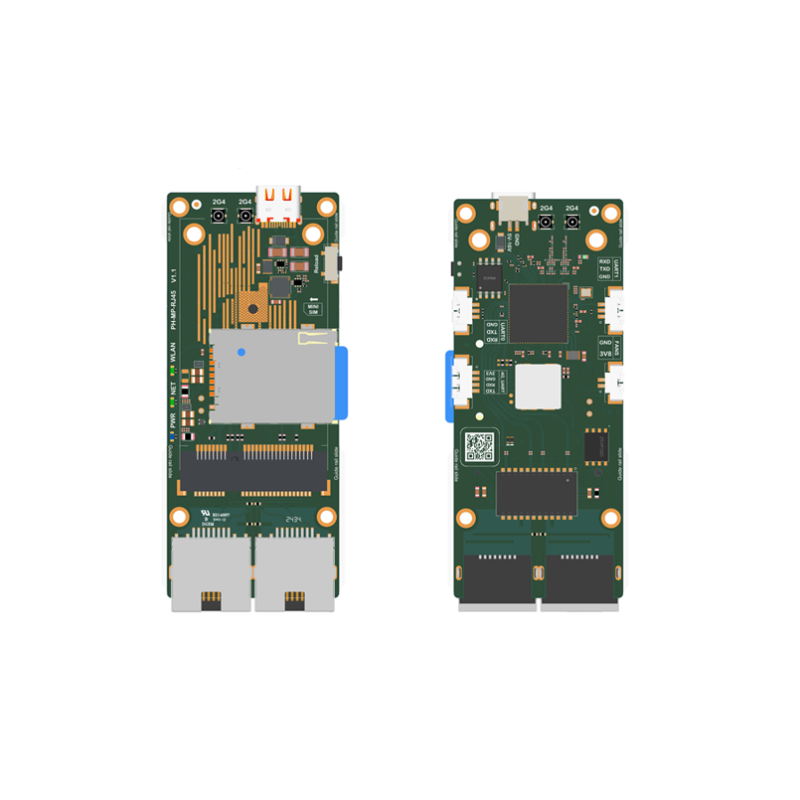

PH-MP-RJ45

Specially designed for IoT applications

PH-MP_RJ45 can be equipped with any 5G&4G cellular communication module with a Quectel MiniPCIe interface, achieving cellular to dual RJ45 interfaces and cellular to 2.4G WIFI. The physical speed of the RJ45 interface can reach up to 100Mbps, and the WIFI transmission speed can reach up to 300Mbps. The MiniPCIe interface is used to achieve seamless switching between different modules to meet the different needs of different scenarios.

PH-MP_RJ45 is designed to use a compact Type-C power supply or an external 1.5mm terminal power supply port, supporting a wide voltage supply of 5V-16V, eSIM, and dual 100Mbps RJ45 network ports to achieve multi device internet access. The overall size is compact, easy to carry, plug and play, and solves the problem of no network and complex operation outdoors to the greatest extent possible. Equipped with 4 IPEX1 generation RF connectors for easy selection during use. The main control adopts MTK scheme and supports UART communication. Support secondary development.

The PH-MP_RJ45 series is suitable for host devices with network ports and slave devices that support WiFi connections. It can be used for applications such as audio and video transmission and big data transmission.
