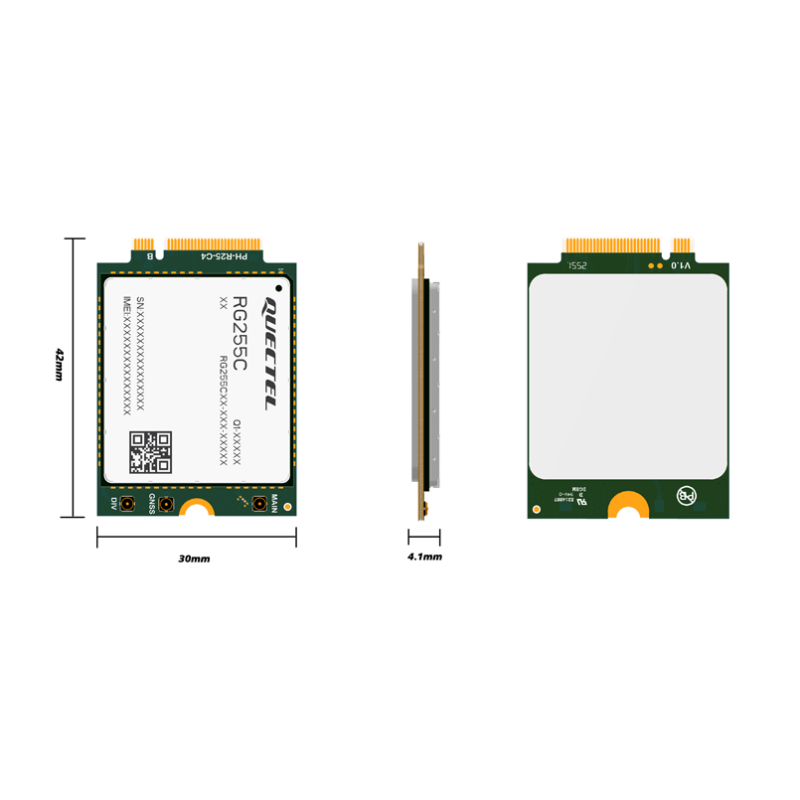

PH-R25-C4_M.2

RedCap&Cat 4 modules are designed specifically for M2M and low-power IoT applications

PH-R25-C4 is a RedCap&LTE module designed using Quectel module and supporting M.2 (B Key) interface. It can support the RG255 series while being compatible with the LTE Standard Cat 4 module for Quectel in terms of packaging, achieving seamless switching between different modules. The PH-R25-C4 module is compatible with EG25 series, EC25 series, EC20 series, and EC200 series to ensure normal operation in underdeveloped areas and countries lacking 5G RedCap networks.

PH-R25-C4 supports deep sleep mode, supports module sleep and wake-up in design, and supports wide voltage input technology. The minimum power supply voltage can be as low as 2.8V, effectively solving the problem of fixed power supply range for IOT devices. And multiple receiving antennas can be used at the receiving end to receive signals, thereby reducing the bit error rate and improving communication quality.

PH-R25-C4 is equipped with rich network protocols, multiple industrial standard interfaces, and various operating system and software functions (suitable for USB drivers under Windows 7/8/8.1/10/11, Linux, Android, and other operating systems), greatly expanding its application scope in the field of M2M, such as central processing units, routers, data cards, tablets, intelligent security, and industrial grade PDAs.
